Fully featured CH4 analyzer with pricing starting at 4300 EUR

• High performance: 0.1 ppm resolution and 1 ppm accuracy, 0.5 Hz sample rate

• Reliable and stable: Tunable Laser Spectroscopy sensor with minimal long term drift

• User friendly: Easy UI and real time data on touch display

• Online and offline logging: Integrated storage and RTC for datalogging + WiFi (opt. 4G/LTE) for online data logging

• Perfect for field and continuous automatic monitoring: Supports both fixed and battery power

Get yours today!

Exceptionally Stable and Precise Measurements

When methane matters the most, the TDL-1200 provides CH4 measurements with high precision and stability, ensuring accurate monitoring of methane concentrations under various conditions.

Long-Term Stability

The TDL-1200 analyzer has demonstrated exceptional stability in long-term outdoor measurements. Over a period of 30 days, the sensor maintained consistent readings, showcasing its reliability for continuous monitoring applications.

Precision and Accuracy

The precision of the TDL-1200 analyzer was evaluated over a 7-day period, displaying high accuracy and low deviation in CH4 measurements. This indicates the sensor's capability to provide precise measurements over extended periods, making it ideal for applications requiring accurate methane monitoring.

DL-TDLAS-CH4-2500 Report

Request the Report

Want to see more data? This report provides longer data sets and Allan deviation plots from TDL-1200 analyzer.

Get the full report

  • Keyspecifications

    General

    • Total Weight: < 3 kg
    • Size: 97 mm × 84 mm × 278 mm
    • Battery Life: Ca. 10 h (20,000 mAh powerbank)
    • Active sampling: Pump based sampling system
    • Easy to use: Live data on LCD display, offline and online datalogging

    CH₄ Measurements

    • Response Time (T₉₀): 10 s
    • Range: 0 - 1200 ppm
    • Precision (1σ): < 1 ppm
    • Accuracy: 1 ppm
    • Resolution: 0.1 ppm
    • Detection Limit: 1 ppm

  • Applications

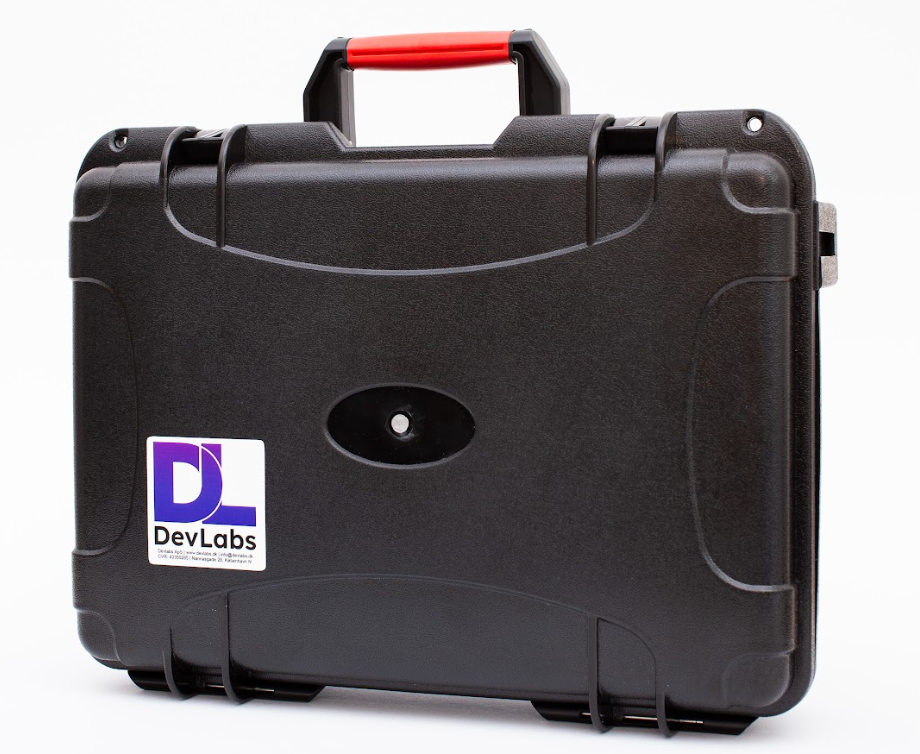

    The P027 Methane Suitcase is versatile and can be used for a wide range of applications, including but not limited to:

    • Oil and Gas Well Monitoring: Detecting methane leaks and emissions
    • Coal Mine Monitoring: Ensuring safety and compliance
    • Greenhouse Gas Monitoring: Environmental research and compliance
    • Mobile Emissions Monitoring: Flexible deployment in various locations
    • Sensor Networks: Integrating multiple units for comprehensive coverage
    • Large Area Emissions Monitoring: Broad detection capabilities
    • Fugitive Emissions: Identifying and managing unexpected methane releases
